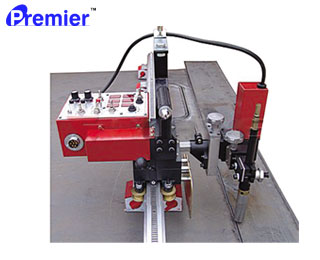

WELDING GENERATORS HK 100



Description:

This machine used for the auto-welding of jointing, vertical and horizontal welding touch has wavering function. Waving speed, angle, central shifting and left/right pause time can be adjusted so as to make the best welding result. the driven is equipped with manual clutch for easy position and returning to the starting position of the starting position of the welding. Small rail is easy to move and equipped with permanent magnet, easy to operate. Widely use in shipbuilding ,bridge ,vehicle oil&chemical and steel structure engineering.

Specifications
HK-100
Model No. Overall Supply Range of Torch Adjustment Weaving Control Cutting Method of
  Dimension Voltage Up Down Forward Work Angle Proceeing Left-Right Shifting Wavering Wavering Speed Driving
  MM V/HZ   Backward   Angle Pause Distance Speed Angle MM / MIN
HK-100 480x260x100 AC 220/50 60 mm 150 mm ±45° ±10° 0~0.25s 0~±8° 0~100 ±15° 30 - 900
