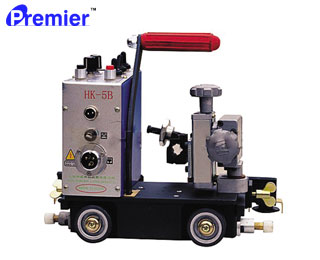

WELDING GENERATORS HK 5B



Description:

Suitabl distance oe for discontinuous or continuous welding for straight angle.Digital display of speed,f discontinuous / continuous.welding and time of end.With no welding, carriage speed is regarded as most fast,more efficient.Magnet type of handle, which can control magnet force more or less.Welding in both left left and right, induction switch fixed in both end.Carriage stop running while welding ends.Permanent  magnet and guide unit fixed in carriag, which canprevenit it from deviating welding line.End welding unit is attached. the time of end welding is adjusted from 0-8S.Wide use in shipbuilding,bridge,vehicle, oil and metal structure plant.

Specifications
HK-5B
Model No.	Overall	Supply	Range of Torch Adjustment				Cutting	Method of	Weight
	Dimension	Voltage	Up Down	Forward	Work Angle	Proceeing Angle	Speed	Driving	KG
	MM	V/HZ		Backward			MM / MIN
HK-5B	320x230x290	AC 220/50	60 mm	60 mm	45°	10°	30 - 1900		8.3
