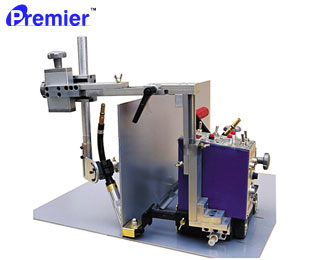

WELDING GENERATORS HK 5B II



Description:

The main body is made of high strength alloy aluminum, compact structure, light and portable. With  auto-welding device for double face horizontal welding; Option for one torch or two torch as required; the fixing holder for carriage can be adjusted in width and height epending on workpiece; application widely.

Specifications
HK-5B II
Model No.	Overall	Supply	Range of Torch Adjustment				Cutting	Method of	Weight
	Dimension	Voltage	Up Down	Forward	Work Angle	Proceeing Angle	Speed	Driving	KG
	MM	V/HZ		Backward			MM / MIN
HK-5B II	500x290x420	AC 220/50	40 mm	40 mm	±45°	±10°	0 - 1900		10
