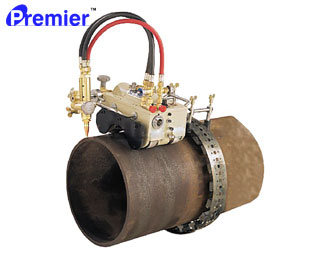

MAGNETIC PIPE GAS CUTTER CG2 11



Description:

The main body is made of aluminum alloy, light and portable.

It adopts permanent magnet wheel to crawl on pipe while cutting

Can be used for parallel,upright and face upward cutting.

Bevel angle: I.Y.V (45°). Especially for circular cutting,convenient in operation widely applied to oil production,chemical pipe project.

Specifications
CG2 11
Model No.	Overall	Supply	Cutting	Cutting	Dia of Circle	Magnetic	Weight
	Dimension	Voltage	Thickness	Speed	Cutting	Adsorbability	KG
	MM	V/HZ	MM	MM / MIN	MM	KG
CG2-11	350x310x180	AC 200/50	Based on plasma source	6-50	> Φ 108	> 50	14.5
