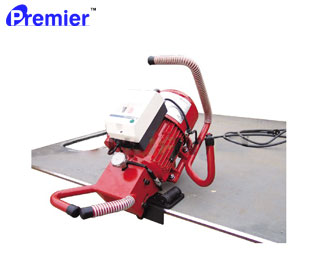

PQX PIPE AND PLATE BEVELER



Description:

This machine is specialized in beveling process for pipe and plate, as well as milling. It features portable and compact and reliable performance. It is widely used and with unique advantage in  cutting process of copper, aluminum,stainless steel and other metals. It´s efficiently 30-50 times the original hand milling.

Specifications
PQX
Model No.	Motor	Supply	Beveling	Beveling	Nos	Weight	Min Slope
	Watts	Voltage	Range	Angle	Blades	KG	Mouth Dia
	W	V/HZ	MM				MM
PQX-15	1100 W	AC 220/50	≤ 15	15° - 60°	12	12.5	≥Φ 168
