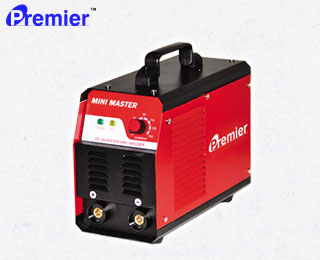

MINI MASTER



Specifications	Mini Master I
Input Voltage	AC230V±15%, 1Ø
Input Frequency	50/60Hz
Max. Input Power	5.3KVA
Max. Input Current	24.2A
No- Load Voltage	60V
Output Current Range	30-180A*
Rated Output Voltage	26.4V
Duty Cycle	Upto 100%
No- Load Power	40W
Efficiency	85%
Power Factor	0.93
Insulation Class	B
Protection Class	IP21
Weight	4.5KGS
Overall Dimensions	283×132×198mm
