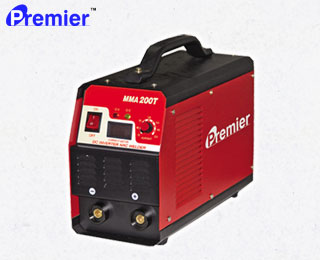

MMA 200 T



Specifications MMA 200T
Input Voltage AC230V±15%, 1Ø
Input Frequency 50/60Hz
Max. Input Power 5.3KVA
Max. Input Current 24.3A
No- Load Voltage 56V
Output Current Range 30-200A*
Rated Output Voltage 26.4V
Duty Cycle 60%
No- Load Power 40W
Efficiency 85%
Power Factor 0.93
Insulation Class B
Protection Class IP21
Weight 8KGS
Overall Dimensions 371×153×290mm
