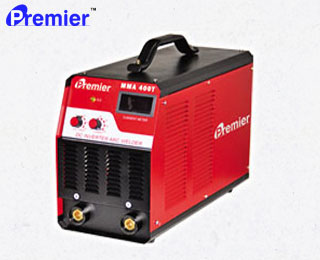

MMA 400 T



Specifications MMA 400 T
Input Voltage AC415±15%, 3Ø
Input Frequency 50/60Hz
Max. Input Power 13.2kVA
Max. Input Current 20A
No- Load Voltage 67.5V
Output Current Range 40-400A*
Rated Output Voltage 32.8V
Duty Cycle 60%
No- Load Power 60W
Efficiency 85%
Power Factor 0.93
Insulation Class B
Protection Class IP21
Weight 14.5kgs
Overall Dimensions 470x201x295mm
