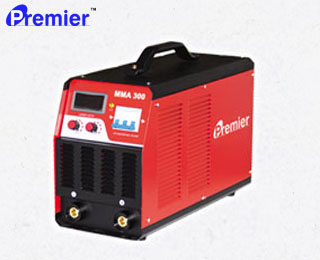

MMA 300



Specifications MMA 300
Input Voltage AC415V±15%, 3Ø
Input Frequency 50/60Hz
Max. Input Power 9.5KVA
Max. Input Current 14.4A
No- Load Voltage 56V
Output Current Range 30-300A*
Rated Output Voltage 30V
Duty Cycle 60%
No- Load Power 40W
Efficiency 85%
Power Factor 0.93
Insulation Class B
Protection Class IP21
Weight 19KGS
Overall Dimensions 480x203x360mm
