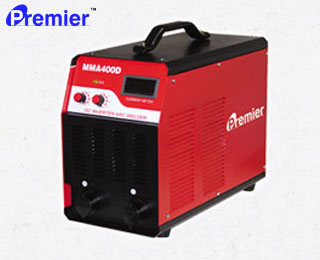

MMA 400 D



Specifications MMA 400 D
Input Voltage AC415V±15%, 3Ø
Input Frequency 50/60Hz
Max. Input Power 18.2KVA
Max. Input Current 27.6A
No- Load Voltage 67.5V
Output Current Range 30-400A
Rated Output Voltage 36V
Duty Cycle 60%
No- Load Power 60W
Efficiency 85%
Power Factor 0.93
Insulation Class B
Protection Class IP21
Weight 15.5KGS
Overall Dimensions 450x220x343mm
