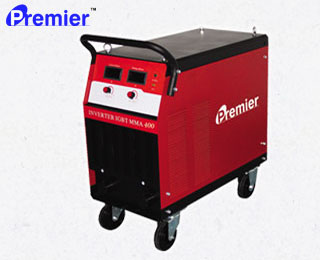

MMA 400 IGBT



Specifications MMA 400 IGBT
Input Voltage AC415V±15%, 3Ø
Input Frequency 50/60 Hz
Max. Input Power 18.2 kVA
Max. Input Current 27.6A
No- Load Voltage 69V
Output Current Range 40 - 400A
Rated Output Voltage 36V
Duty Cycle 60%
No- Load Power 60W
Efficiency 85%
Power Factor 0.93
Insulation Class B
Protection Class IP21
Weight 58kgs
Overall Dimensions 622x318x594 mm
