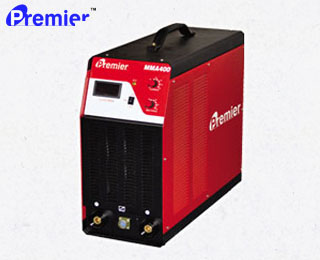

MMA 400



Specifications MMA 400
Input Voltage AC415V±15%, 3Ø
Input Frequency 50/60Hz
Max. Input Power 18.2KVA
Max. Input Current 27.6A
No- Load Voltage 67.5V
Output Current Range 40-400A*
Rated Output Voltage 36V
Duty Cycle 60%
No- Load Power 60W
Efficiency 85%
Power Factor 0.93
Insulation Class B
Protection Class IP21
Weight 17KGS
Overall Dimensions 480x203x360mm
